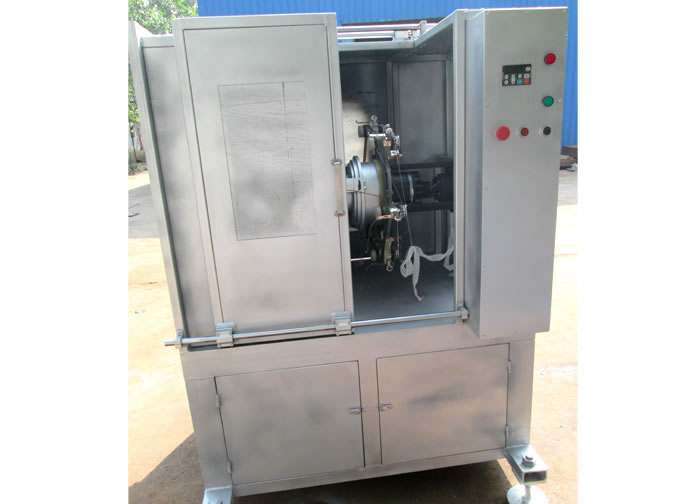

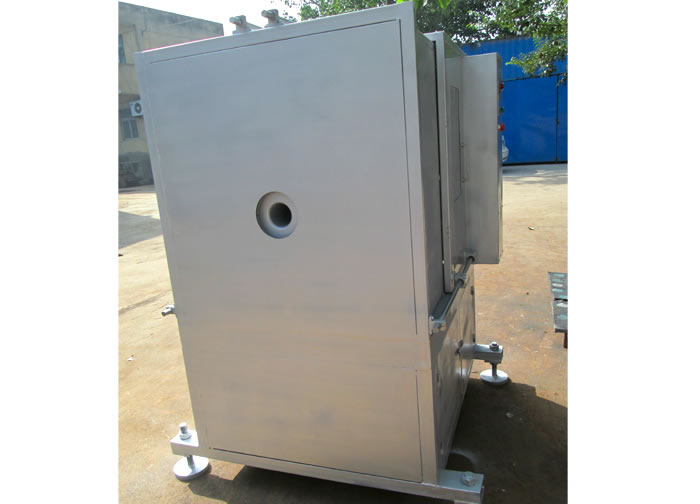

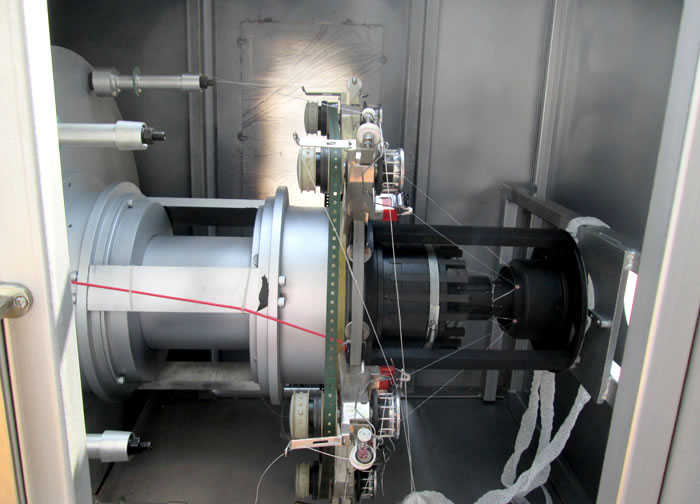

膠管鉤針機 Rubber hose knitting machine
此款機器適用于在膠管外層鉤編一層織物，產量高，配合擠出設備適合于流水線生產。
Rubber hose knitting machine is used to knit the weaving layer of rubber hose, which is of high output and suitable for production line together with extruding.
|
Model |
QXHK |
|
Number of bobbin |
can be customized |
|
Bobbin weight |
～3Kg |
|
Suitable hose diameter |
8-100mm |
|
Number of needles |
8, 12, 18, 24 and so on |
|
Motor power |
5.5kw |
|
Center height |
1050±15mm（can be customized） |
|
Weight |
800kg |
|
Overall size |
1200*1455*2220mm (without packing) |
|
Speed of motor |
0-1500RPM |
|
Products diameter |
¼, 3 / 8, 1 / 2, 1, 1 1 / 18, 1 ¼, 1 ½, 1 ¾, 2inch |
|
Output |
Max. 6 meters/minute |
|
Suitable rubber extrusion |
12 meters/minute |
|
Traction take up |
optional |
|
Other device |
Automatic stop when door opened; warning device when appear needle broken、thread cut and thread disordered. |
